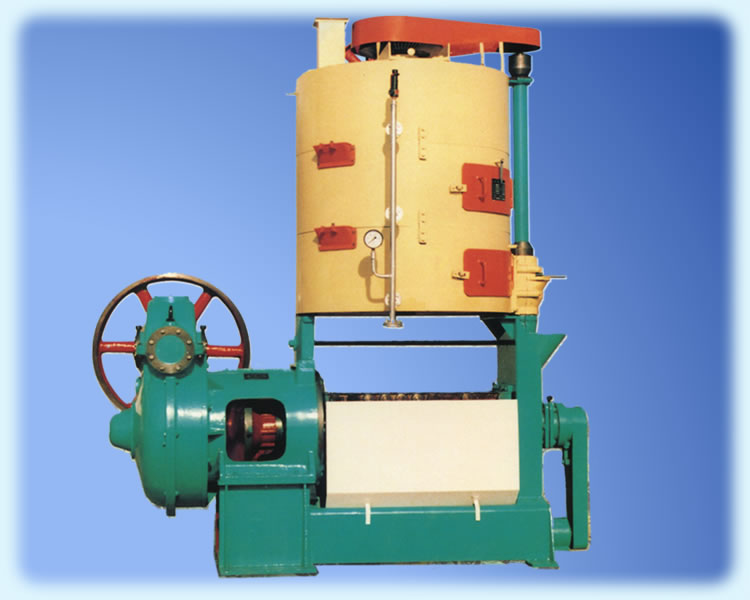

200A-3 Oil Expeller

200A-3 Oil Expeller
200A-3 Oil Expeller is applied for various oilseeds pressing，such as: rapeseed,peanut kernel,sesame,cottonseed kernel,soy bean,coconut,tea seed,sunflower seed and so on. We can exchange the worms of the oil expellers according with the request of customers to press rice bran.
 Technical Data
1、Inside Diameter of Cooker: φ1220 mm;
2、Stirring shaft speed: 35 rpm;
3、Steam Pressure: 5～6 kg/cm2;
4、Diameter of Chamber: Front:φ180 mm; Rear:φ152 mm;
5、Main Shaft Speed: 8 rpm;
6、Feeding Shaft Speed: 69 rpm;
7、time in chamber: 2.5 min;
8、steaming and roasting time: 90 min;
9、Max.Work temperature for oilseed:125-128 ℃;
10、Power: 18.5 kw;
11、Overall dimensions (L×W×H): 2850×1850×3270mm;
12、Weight: 5000 kg
13、Capacity (The treating capacity for seeds)

Name of oil seeds	Capacity	Oil Yield	Dry Cake Residual Oil Rate
Rape seed	9000～10000	33～38	6～7
Peanuts	9000～10000	38～45	5～6
Sesame seed	6500～7500	42～47	7～7.5
Cotton seed	9000～10000	30～33	5～6
Soya beans	8000～9000	11～14	5～6
Sunflower seed	7000～8000	22～25	8～9.5
Rice bran	5500～6500	10～14	7～8

Features Of The Oil Expellers
1.It consists of the part main shaft, worms, bars, gears etc.,which is made of advanced alloy steel to be harden. Even working in the condition of high temperature and abrasion day and night, the parts of the oil presses are also durable.
2.It is suitable for steaming and sauting, and can be adjusted to the temperature in accordance with request of  various oilseeds in order to get the high-quality oil.
3.From feeding the oilseed to oil flowing and the cake shaping, the whole process stage is automatic and continous. The oil expeller is very easy to manage, and saving labour.

Note:
1)The capacities in the table are gained under the  condition that the oil plant has the complete oilseed treatment equipments and the oilseed is heated well. Because of the difference of various oilseeds characters and the operating condition, the data are variable.
2)The worms to press rice bran is  specially made.
3)The type "200A-3" of the oil press originates from capacity(200 dan) of its and the cooker has 3 floors
